BFE Bio-Kit
Bioaerosol Sampling System
Bioaerosol
Bioaerosol is a component of Particulate Matter (PM) in the atmosphere and consists of airborne particles that have a
biological origin.
Bioaerosol is a mix of:
- Microorganisms (viruses, bacteria, fungi and their spores, algae and protozoa);
- Pollen;
- Fragments of animals, insects, plants;
- Derived substances (toxins and allergenes) produced by any living species.
Bioaerosol study involves a lot of application fields (allergology, industrial aerobiology, cultural heritage, bioclimatology, physics and chemistry of the atmosphere, ecology, epidemiology, biological pollution, microbiology, plant pathology, biological terrorism, indoor/outdoor air quality).
EN 14683 describes testing methods for medical facial masks intended to limit the transmission of infectious agents between patients and clinical staff during surgeries and other medical contexts with similar requirements.
- Pharmaceutical;
- Cosmetics;
- Health;
- Filter Test;
- Military;
- Air Quality;
- Clean Rooms;
- Food.
BFE Kit Test: EN14683
Aerosol Generator
(Cod. AC99-120-0000SP)
- Generating Aerosol from all kinds of liquids,suspensions and solutions;
- Integrated pump (no compressed air required);
- Adjustable Nebulyzing and dilution air (dry) flow;
Andersen Cascade Impactor (ACI) 6 Stage viable
(Cod : AC99-120-0002SP)
- Functioning principle: inertial impaction;
- Required Flow: 28,3 l/min (1 CFM);
- Direct sampling on 90 mm petri plates;
- Made of corrosion resistant material.
Extraction Condenser
(Cod. AC99-120-0003SP)
- PYREX glass Condenser;
- PYREX glass Condensation vessel.
Aerosol Chamber
(Cod. AC99-120-0001SP)
- Pyrex tempered glass, dims. 600 mm x 80 mm Ø;
- Upper flange of PTFE (HEPA filter included);
- Lower flange of PTFE (included: mask sample
holder); - Connections to: aerosol generator, 6 stage
impactor and n° 4 additional side connectors
(i.e. for optical particle counter: optional).
Sampler with Automatic Flow Control
(Cod. AC99-000-0740SP) Bravo X R Bio [differential pressure]
- Automatic flow regulation;
- Flow range: 0.5 to 70 l/min;
- HEPA filter (pump exhaust) included.

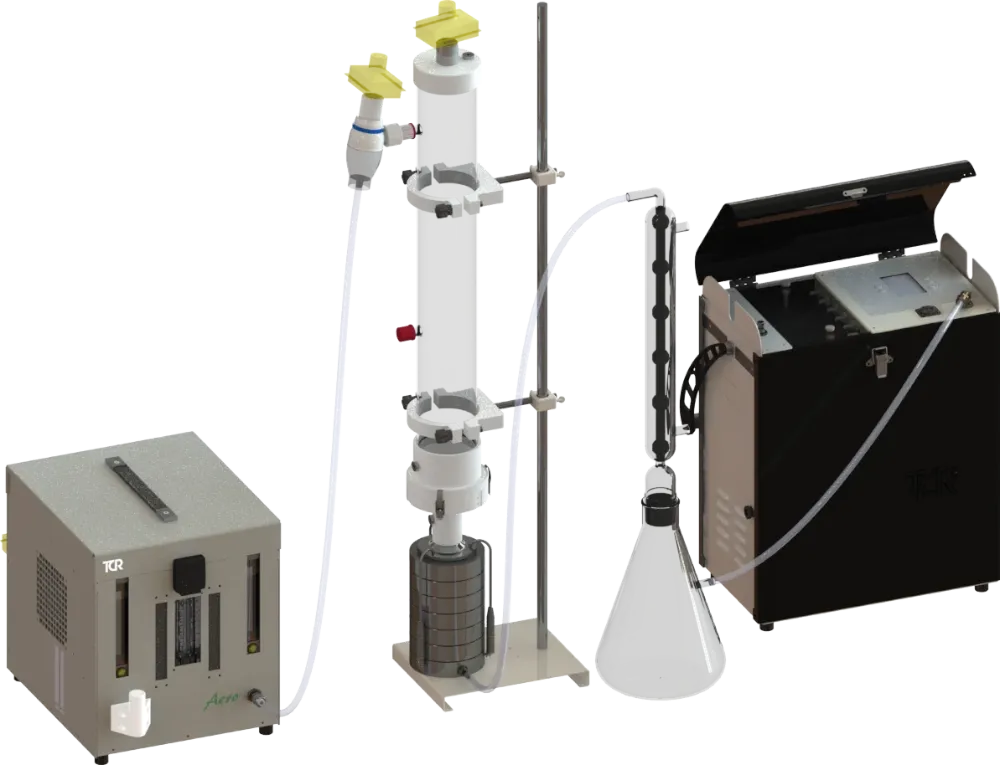

BFE Kit Line - EN14683 (Annex B)
BFE Bio Kit, allows to be in compliance with all the requests for BFE % efficiency test (Bacterial filtration efficiency) and breathability test (Pa/cm2). It is also done for ASTM F2101 and EN 9237 for measuring the permeability of fabrics to air and is applicable to most types of fabrics, including industrial fabrics for technical purposes, nonwovens and made-up textile articles that are permeable to air.
These operating phases can be repeated more time. The system design and material composition allow all service and maintenance operations required for every sampling batch.
- Fill in the aerosol generator with the bacteria suspension to nebulize;
- Set up the multi stage cascade impactor and connect the sampling pipe;
- Connect the atomization chamber to the impactor;
- Connect the condenser at the impactor output suction line;
- Connect the output of the condenser to the sampler, setting a 28,3 l/min flow;
BFE Bio Kit: Product Codes
|
EQUIPMENT
|
CODE
|
|---|---|
|
Aerosol Generator Model DDS Aero
|
AC99-120-0000SP
|
|
Anderson Cascade Impactor 6 Stage (viable)
|
AC99-120-0002SP
|
|
Extraction Condenser made in Pyrex Glass
|
AC99-120-0003SP
|
|
Aerosol chamber made in Pyrex Glass
|
AC99-120-0001SP
|
|
Bravo X R Bio Sampler
|
AA99-000-0740SP
|
